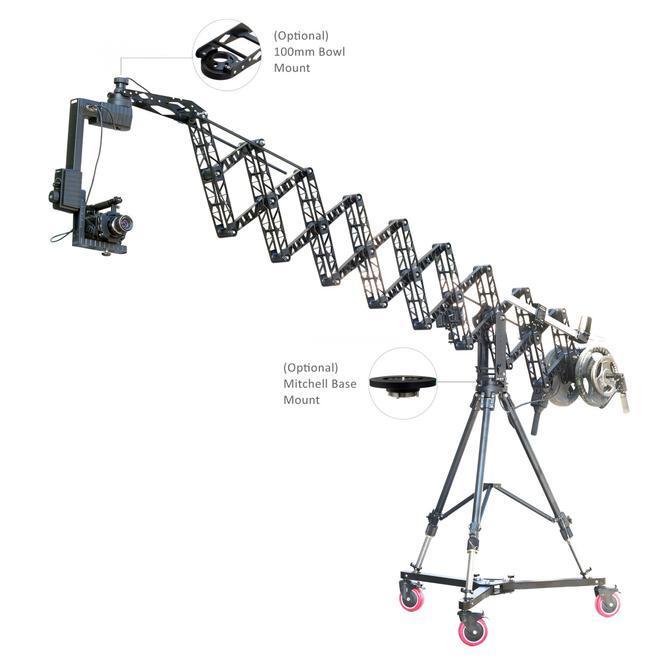

SCISSOR JIB
- Construction: High-grade Aluminum
- Total No. of High-Speed Steel Bearings: 70

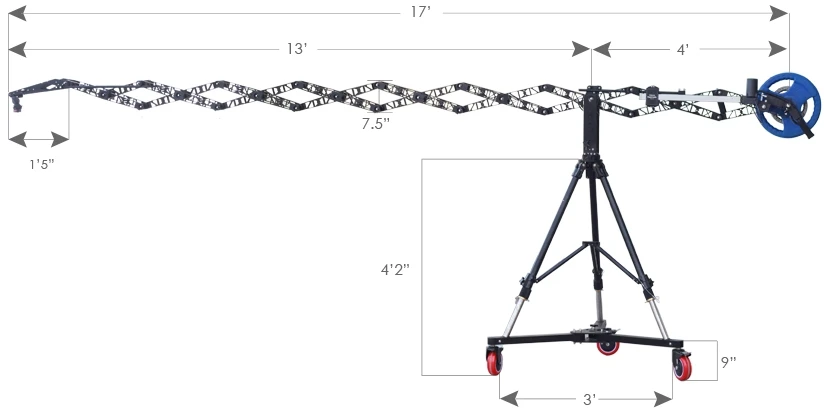

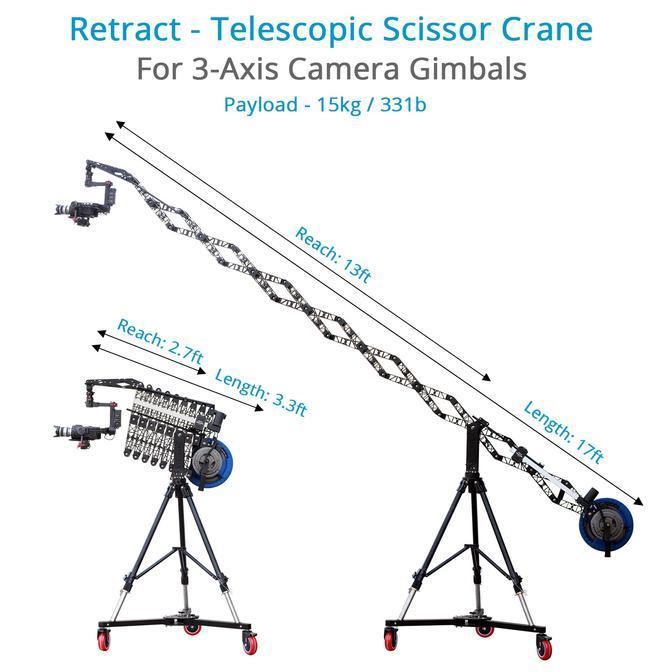

- Total Length Extended: 17ft / 5.2m
- Total Length Closed: 3.3ft
- Extended Height from Ground: 17.4ft / 5.3m
- Closed Height from Ground: 6.3ft
- Load Capacity: 15kg / 33lb
- Crane Pan Lock: Yes
- Crane Tilt Lock: Yes
- Self-balance Weight (Extended/Collapsed): 15kg / 33lb
- Power Source: V-Mount Battery (Not Included)
- Battery Runtime: 1 ½ - 2 hours
- Weight of Scissor Jib: 33kg/73lb
MOTOR
- IP44 Protection Certified
- Rated Voltage: 12V -15V DC
- Rated Power: 60W
- Nominal Current: 10A DC
- Maximum Thrust Force: 1000N
- Maximum Pulling Force: 1000N
- Travelling Speed: 36mm/sec
- Noise: <55dB
- Vibration: Not Noticeable
JIB PACKAGING INFO
- Product Weight with Flight Case:71kg/157lb
- Flight Case Dimensions (L x W x H): 85cm x 40cm x 80cm
