Power to LED 400W
DC current to the LED - flicker free
Rated Voltage & PFC 90-250V 50-60Hz PFC 0,96
Power consumption
450W @ 230V
460W @120V

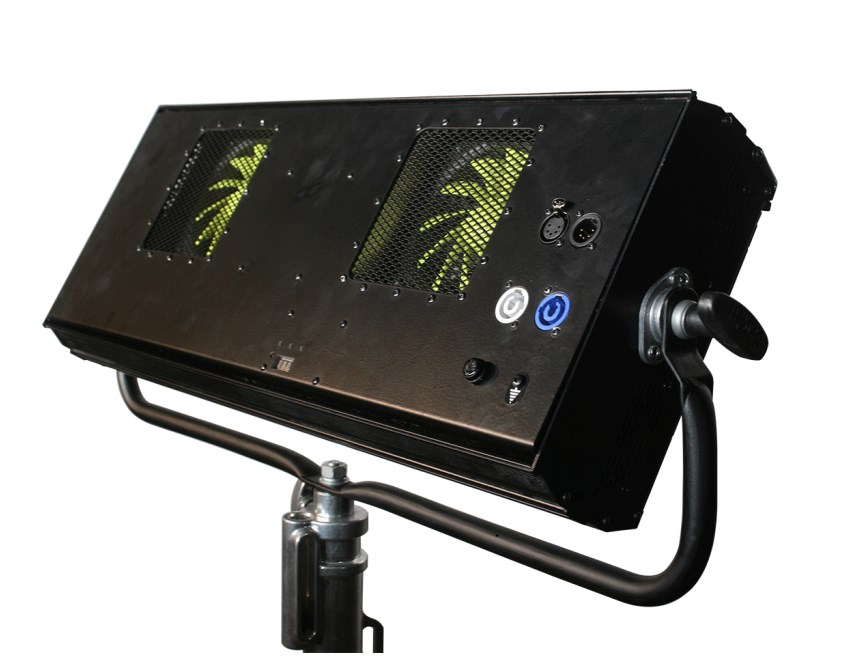

Power Connection powerCON IN & OUT
DMX Data linkUSITT DMX512-A
5-pin XLR for DMX in & out.
Use shielded data cables.
Do not overload the daisy chain.
Up to a maximum of 32 devices can be used on a single DMX chain
DMX Channels:
CCT
T: 3.200°K
D: 5.600°K
CRI / TLCI
T: 96 / 96
D: 96 / 96
Protection Type: IP 22
Weight of Fixture:
DC current to the LED - flicker free
Rated Voltage & PFC 90-250V 50-60Hz PFC 0,96
Power consumption
450W @ 230V
460W @120V
Power Connection powerCON IN & OUT
DMX Data linkUSITT DMX512-A
5-pin XLR for DMX in & out.
Use shielded data cables.
Do not overload the daisy chain.
Up to a maximum of 32 devices can be used on a single DMX chain
DMX Channels:
- 1 @ 8bit
- 2 @ 16bit
CCT
T: 3.200°K
D: 5.600°K
CRI / TLCI
T: 96 / 96
D: 96 / 96
Protection Type: IP 22
Weight of Fixture:

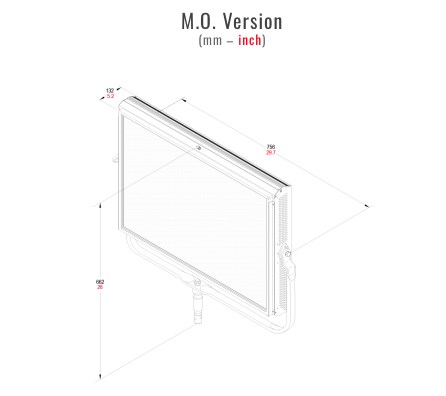

- M.O. 19,8 kg. (43.7 lb)
- P.O. 22,1 kg. (48.7 lb)
