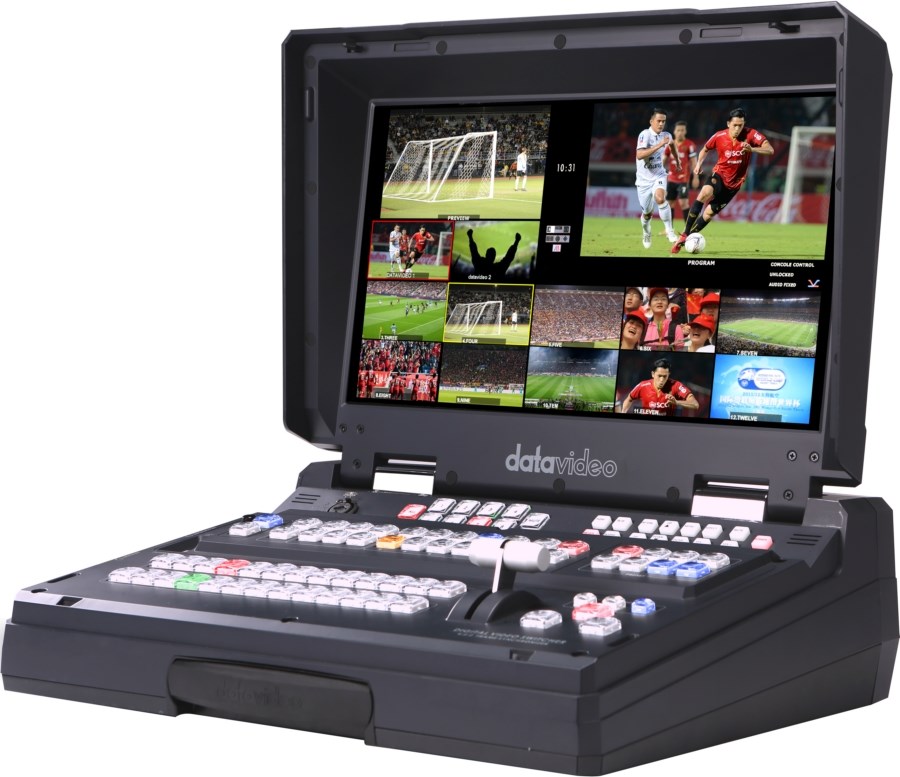

Supports 12 HD or SD Inputs in a variety of configurations:
HD Mode: (1) 12 HD-SDI , (2) 9 HD-SDI + 3 HDMI
SD Mode: (1) 12 SD-SDI , (2) 9 SDI + 3 HDMI
Three user defined HD/SD-SDI outputs
1 HDMI output for multi-view monitoring
4x XLR Analogue Audio Inputs, 2x XLR Analogue Audio Outputs,
User defined and positioned dual PIP.
Two DSK with a set up choice of basic Luma key or alpha channel.
Built-in title overlay system (TC-200) that works with CG systems.
Cut, Mix and Wipe with border
Logo and Clock on screen
XPT (Cross Point Assignment)
Audio delay for each de-embedded audio source.
SMPTE/ EBU Audio selectable via OSD.
Black burst PAL or Tri-Level Sync Reference.
Tally, GPI support
Build in 8CH Intercom system
One 17.3-inch with a resolution of 1600x900 dots
HD Mode: (1) 12 HD-SDI , (2) 9 HD-SDI + 3 HDMI
SD Mode: (1) 12 SD-SDI , (2) 9 SDI + 3 HDMI
Three user defined HD/SD-SDI outputs
1 HDMI output for multi-view monitoring
4x XLR Analogue Audio Inputs, 2x XLR Analogue Audio Outputs,
User defined and positioned dual PIP.
Two DSK with a set up choice of basic Luma key or alpha channel.
Built-in title overlay system (TC-200) that works with CG systems.
Cut, Mix and Wipe with border
Logo and Clock on screen
XPT (Cross Point Assignment)
Audio delay for each de-embedded audio source.
SMPTE/ EBU Audio selectable via OSD.
Black burst PAL or Tri-Level Sync Reference.
Tally, GPI support
Build in 8CH Intercom system
One 17.3-inch with a resolution of 1600x900 dots
