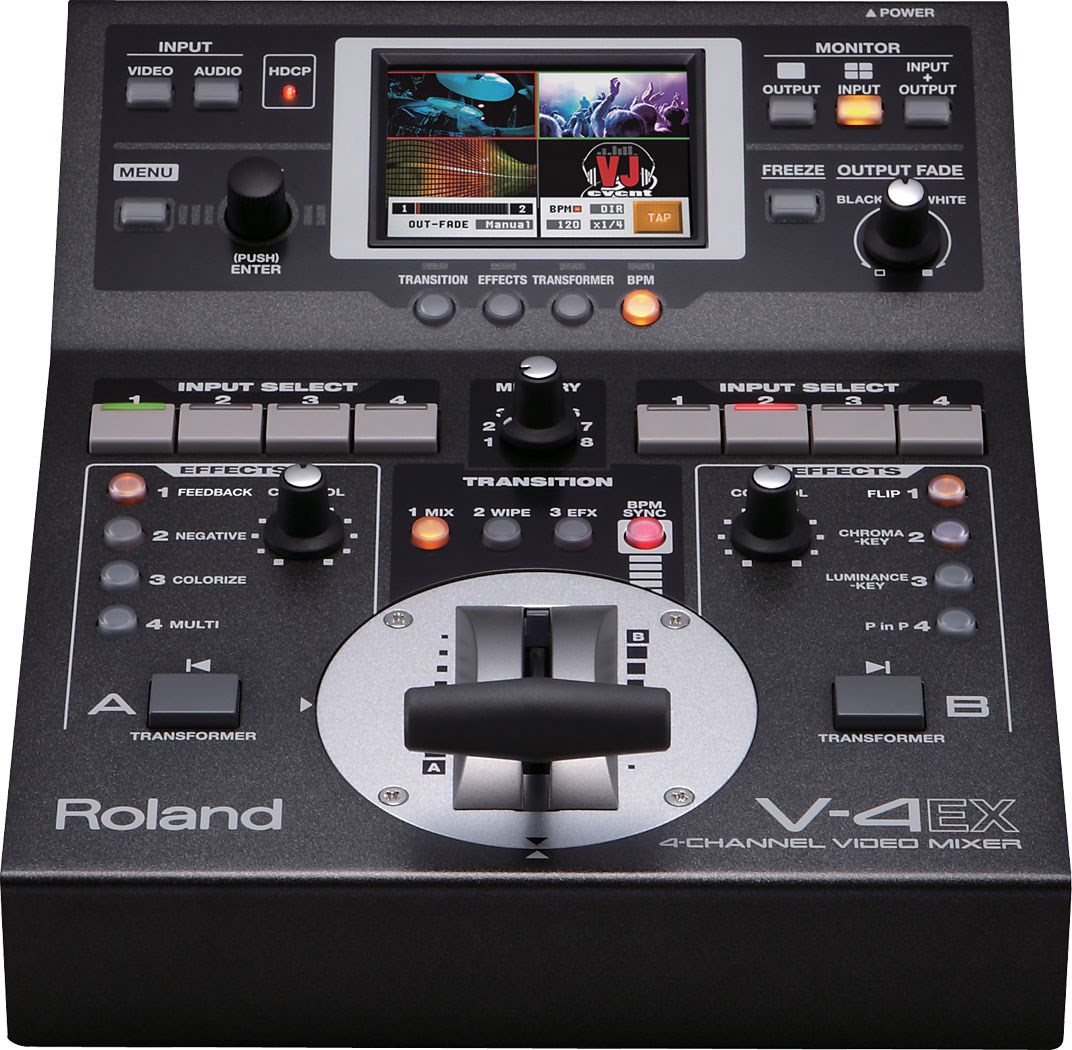

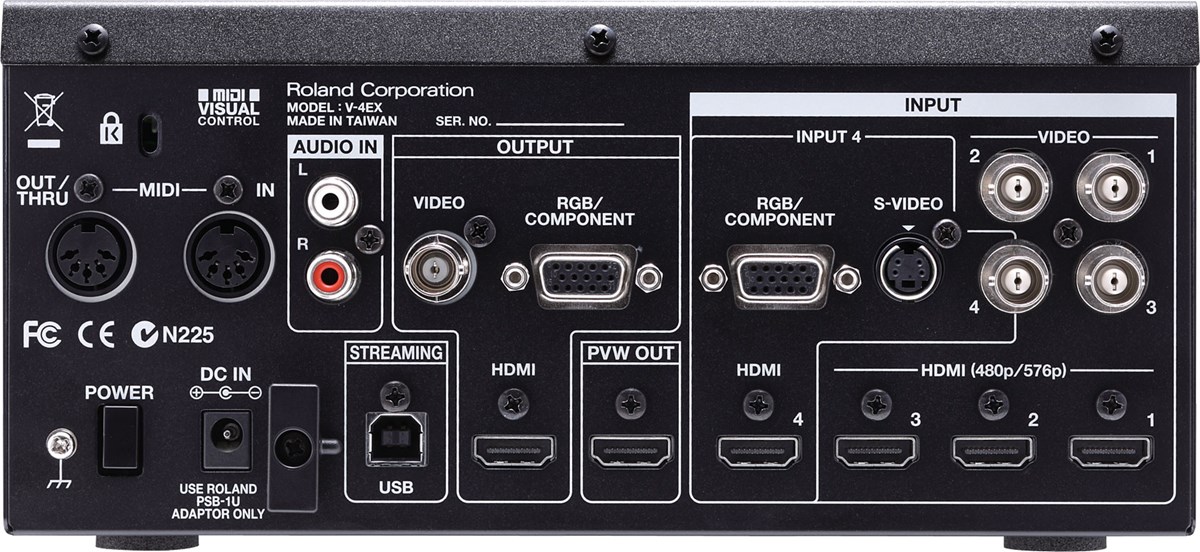

Mikser ROLAND V-4 EX HDMI

Specyfikacja - Przetwarzanie - Video Processing 4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL) Audio Processing Sampling Rate : 24 bits/48 kHz, 2 ch Formaty Wejściowe HDMI Video (INPUT 1 -- 3) 480/59.94p (when set to NTSC), 576/50p (when set to PAL) HDMI and Component Video (INPUT 4) 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC), 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL) HDMI Audio (INPUT 1 -- 4) Linear PCM, 24 bits/48 kHz, 2 ch RGB (INPUT 4) 640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz * The refresh rate is the maximum value of each resolution. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz : Reduced blanking Composite Video (INPUT 1 -- 4) NTSC, PAL S-Video (INPUT 4) NTSC, PAL Formaty Wyjściowe HDMI and RGB/Component Video (OUTPUT) 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 * The output format of HDMI and RGB/Component is always the same. When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector. When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector. * The refresh rates of RGB format is 60 Hz when set to NTSC, 75 Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.) * RGB formats : Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz : Reduced blanking HDMI Audio (OUTPUT) Linear PCM, 24 bits/48 kHz, 2 ch Composite Video NTSC, PAL Preview Video (PVW OUT) 480/59.94p when set to NTSC, 576/50p when set to PAL Preview Audio (PVW OUT) Linear PCM, 24 bits/48 kHz, 2 ch USB Video 720 x 480 when set to NTSC, 720 x 576 when set to PAL, Motion JPEG USB Audio Linear PCM, 16 bits/48 kHz, 2 ch Złącza Wejściowe Video HDMI : Type A (19 pins) x 4 (INPUT 1 -- 4) RGB/Component : HD DB-15 type x 1(INPUT 4) Composite : BNC type x 4 (INPUT 1 -- 4) S-Video : 4-pin mini DIN type x 1 (INPUT 4) Audio RCA-pin type x 1 para (AUDIO IN) Złącza Wyjściowe Final Output HDMI : Type A (19 pins) x 1 (OUTPUT) RGB/Component : HD DB-15 type x 1 (OUTPUT) Composite : BNC type x 1 (OUTPUT) Preview Output HDMI : Type A (19 pins) x 1 (PVW OUT) Inne Złącza MIDI : 5 pins DIN type x 2 (IN, OUT/THRU) USB : B type x 1 (dla streamingu i sterowania) Poziom Impedancji Sygnału RGB/Component Signal Level : 1.0 Vp-p (luminance), 0.7 Vp-p (chroma) Impedance : 75 ohms Composite Signal Level : 1.0 Vp-p Impedance : 75 ohms S-Video Signal Level : 1.0 Vp-p Impedance : 75 ohms Analog Audio Nominal Input Level : - 10 dBu Maximum Input Level : + 8 dBu Impedance : 15 k ohms Inne Wyświetlacz Graphic Color LCD, 320 x 240 punktów, dotykowy Efekty Video Transition : Mix, Cut, Wipe (259 patterns) Composition/Filter : Picture in Picture, Luminance Key, Chroma Key, Strobe, Negative, Colorize, Feedback, Emboss, Multi, Mirror etc. (148 types) Others : Output Fade, Freeze Zasilanie Zasilacz AC Pobór Prądu 2.0 A Akcesoria Zasilacz AC, Kabel Zasilający, 2 przejściówki RCA - BNC, Owner\\\'s Manual Rozmiar i Waga 225 mm x 296 mm x 105 mm; 2.6 kg. Specyfikacja może ulec zmianie bez uprzedzenia
