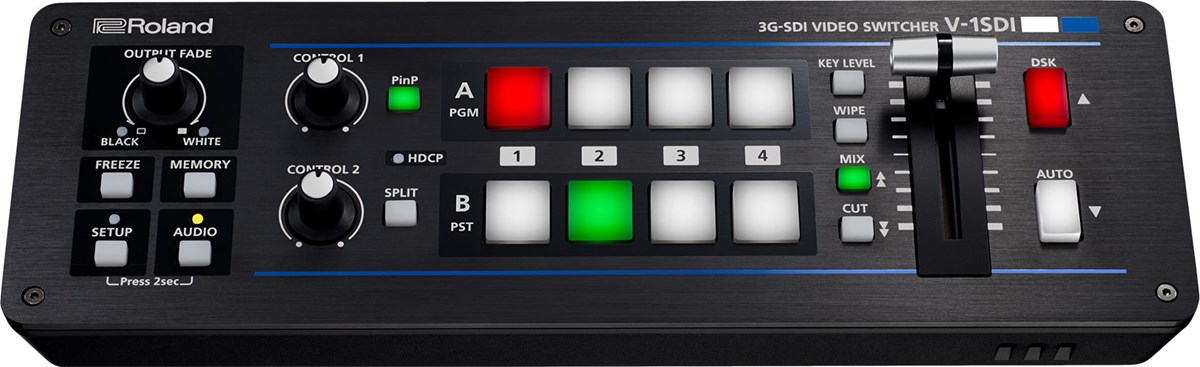

• Video
• Video Processing
• 4:2:2 (Y/Pb/Pr), 8-bit
• Input Connectors
• SDI INPUT 1--3: BNC x 3 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI INPUT 3--4: Type A (19 pins) x 2 * HDCP Supported * INPUT 3: SDI or HDMI selected.
• Output Connectors
• SDI OUT PGM: BNC x 1 SDI OUT PVW: BNC x 1 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI OUT MULTI-VIEW: Type A (19 pins) x 1 * HDCP Supported
• Input Formats
• SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M HDMI INPUT 3 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p) 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p) * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).HDMI INPUT 4 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50pVGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking. * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
• Output formats
• SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M HDMI OUT MULTI-VIEW 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p) 1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i) 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p) * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
• Video Effects
• Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types) Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
• Audio
• Audio Processing
• Sampling rate: 24 bits/48 kHz
• Audio Formats
• SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M HDMI: Linear PCM, 24 bits/48 kHz, 2ch

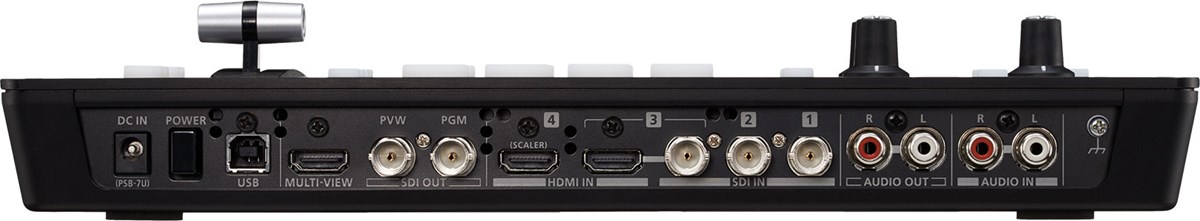

• Input Connectors
• Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2Analog: AUDIO IN (RCA phono type) MIC (Stereo mini type, plug-in power supported)
• Output Connectors
• Digital: SDI OUT PGM: BNC x 1 SMPTE 299M SDI OUT PVW: BNC x 1 SMPTE 299M HDMI OUT MULTI-VIEW: Type A (19 pins) x 1Analog: AUDIO OUT (RCA phono type) PHONES (Stereo mini type)
• Input Level
• AUDIO IN: -10 dBu (Maximum: +8 dBu) MIC: -41-- -13 dBu (Maximum: -1 dBu)
• Input Impedance
• AUDIO IN: 15 k ohms MIC: 10 k ohms
• Output Level
• AUDIO OUT: -10 dBu (Maximum: +8 dBu) PHONES: 92 mW + 92 mW (32 ohms)
• Output Impedance
• AUDIO OUT: 1 k ohm PHONES: 10 ohms
• Audio Effects
• EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
• Others
• Other Connectors
• USB: B Type (for remote control from PC) RS-232: DB-9 type
• Other Functions
• MEMORY (8 types) FREEZE (input video captured) OUTPUT FADE (Audio, Video: WHITE or BLACK)
• Power Supply
• AC Adaptor
• Current Draw
• 2.1 A
• Power Consumption
• 25 W
• Operation Temperature
• +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
• Dimensions
• 313 (W) x 108 (D) x 59 (H) mm 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
• Weight (excluding AC adaptor)
• 1.2 kg 2 lbs 10-2/5 oz
• Accessories
• Owner\\\\\\\'s manual AC adaptor Power cord Cord hook
• * 0 dBu=0.775 Vrms All specifications and appearances are subject to change.
