Charakterystyka Roland V-1 HD:
4 HDMI wejścia z Frame Buffers
Kontrola z poziomu urządzenia lub z komputera
12 kanałowy cyfrowy mikser audio
Ręczny T-Bar
Program Output and Multi-View Preview
Picture-In-Picture, Green-Screen Keying
Zaawansowane efekty video

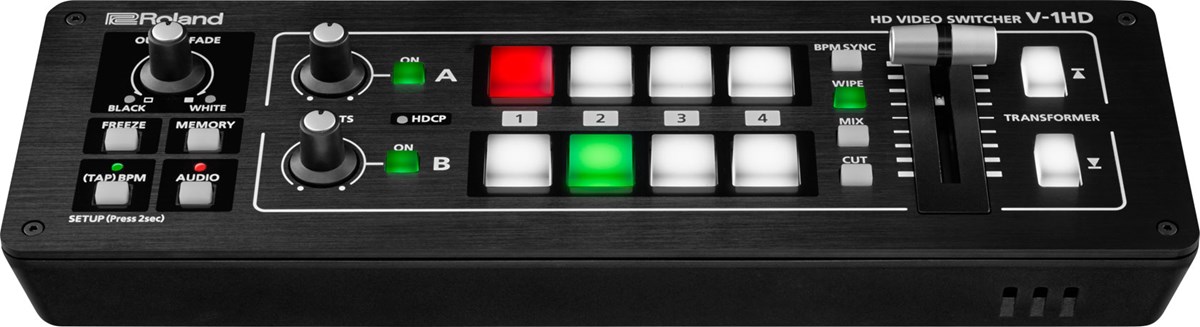

Roland V-1HD HD Video Switcher from Roland Professional A/V
Video
Video Processing
4:2:2(Y/Pb/Pr), 8-bit

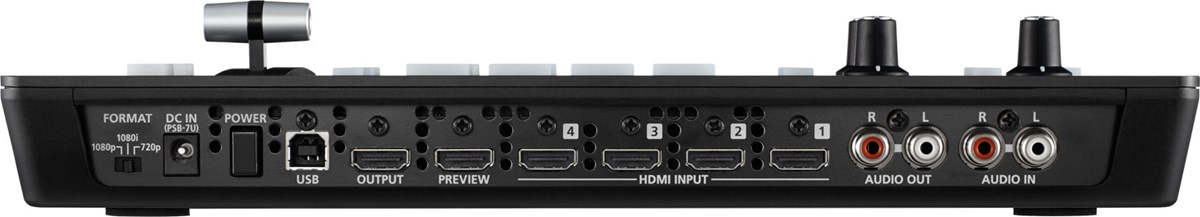

Input Connectors
HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
Output Connectors
HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
Input Formats
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i,1080/59.94p,
1080/50p(FORMAT switch = 1080i or 1080p)
*The input interlaced video signal is converted to progressive video signal by internal processing.
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Output Formats
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types),
TRANSFORMER(11 types)
EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE,
MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@,
GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/2)@,
SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@,
SPLIT(V-CENTER)@
*@ marked Effects are effected common to A-BUS and B-BUS.
Audio
Audio Processing
Sampling rate: 24bit/48kHz
Input Connectors
Digital: HDMI INPUT 1–4 (19 pins) x 4
Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
Output Connectors
Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
Input Level
AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
Input Impedance
AUDIO IN: 15 k ohms, MIC:10 k ohms
Output Level
AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
Output Impedance
AUDIO OUT: 1k ohms, PHONES: 10 ohms
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors
USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
Other Functions
MEMORY (8 types), FREEZE (input video captured),
BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK)
Power Supply
AC adaptor
Current Draw
1.5A
Power Consumption
18W
Dimensions
313 (W) x 102 (D) x 59 (H) mm / 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches
Weight
1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz
Accessories
Owner’s Manual, AC Adaptor, Power Cord, Cord Hook
