Professional Cine Lenses with Concrete Build
The new lineup of Pictor Zoom lenses from DZOFILM cover Super35/APS-C sensors. With a constant T/2.8 maximum aperture at every focal length, both lenses will cover a total range of 20-125mm at T2.8!
Pictor Zoom lenses are completely parfocal and the aperture diaphragm consists of 16 blades for a beautiful smooth and creamy bokeh.
These lenses work perfectly with cameras that feature a Super35/APS-C sensor like the Canon C200, ZCAM E2, BMPCC 6K, URSA Mini Pro 12K and the RED Komodo camera.
Parfocal Design – Center image stay sharp during zooming in or out.
No matter from close-up to wide shot, Or rapidly zoom out to long shot, Under Parfocal design, focus keeps still all the way along.
Minimal Breathing
Thanks to the floating structure, the breathing of Pictor Zoom lenses are negligible during focusing.
Versatile in Ultra compact
At just 1.6kg (3.5 lbs), Pictor Zoom can be easily mounted on crane, jib, tripod, ROV or other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting.
Features:
Specifications:
Focus Distance
|
20-55mm
|
50-125mm
|
T- stop
|
T2.8 – T22
|
T2.8 – T22
|
Format
|
Super35 / APS-C
|
Super35 / APS-C
|
Focus Rotation Angle
|
≈270°
|
≈270°
|
Zoom Rotation Angle
|
100°
|
100°
|
Iris Rotation Angle
|
65°
|
72°
|
Gear pitch
|
0.8 M
|
0.8 M
|
Iris Blades
|
16
|
16
|
Zoom Ratio
|
2.75x
|
2.5x
|
Image Circle
|
24.89mm x 18.66mm
(φ31.1mm)
|
24.89mm x 18.66mm
(φ31.1mm)
|
Flange Distance
|
52mm (PL mount)
44.14mm (EF mount)
|
52mm (PL mount)
44.14mm (EF mount)
|
Close Focus Distance
|
0.6m / 2ft
|
0.8m / 2ft8in
|
Focus Scales
|
Imperial + Metric
|
Imperial + Metric
|
Filter Diameter
|
86mm
|
86mm
|
Front Diameter
|
Φ95mm
|
Φ95mm
|
Length
|
164mm (PL mount)
171.9mm (EF mount)
|
175mm (PL mount)
182.9mm (EF mount)
|
Weight
|
≈1520g
|
≈1700g
|
Package Content:

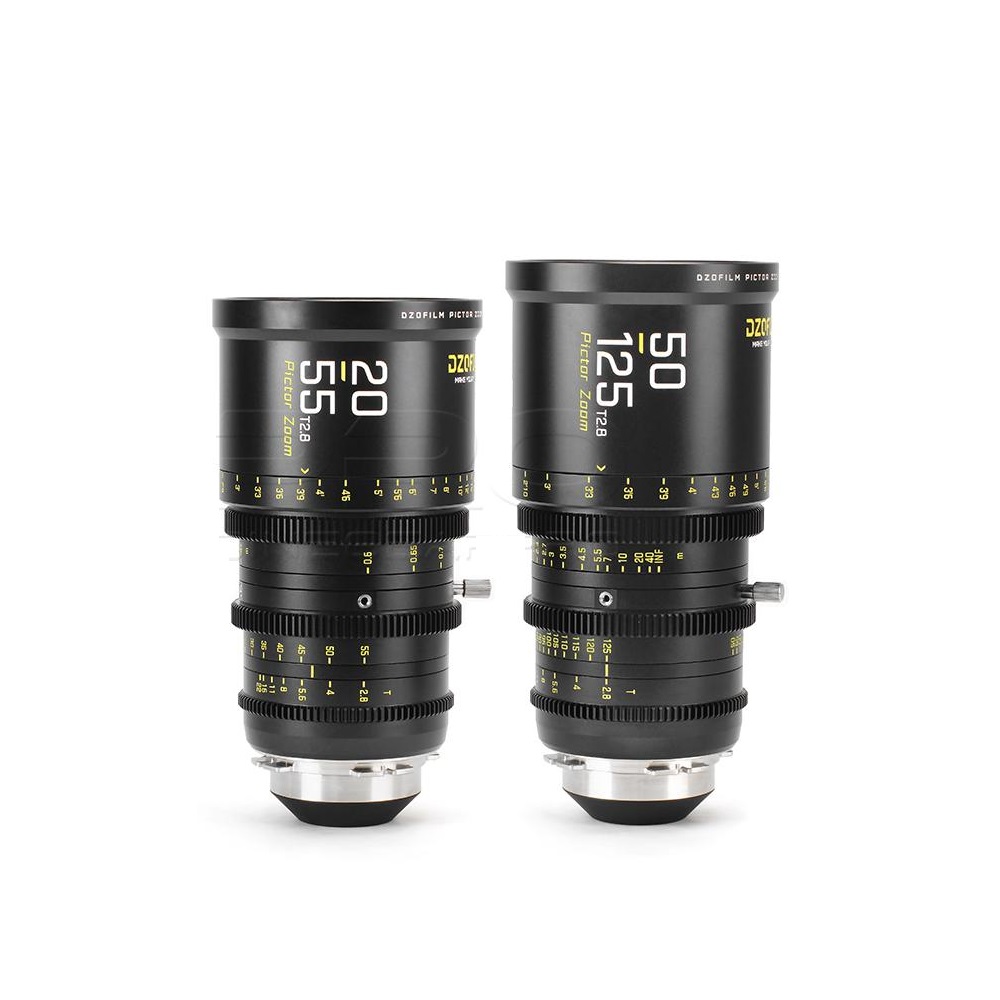

Dual Lens Kit (PK1194):
1x DZOFiLM 20-55mm T2.8 Cinema Pictor Zoom Lens
1x DZOFiLM 50-125mm T2.8 Cinema Pictor Zoom Lens
1x CINECASEPRO CP-AIR80 Lens Protection Hard Case
