Supports 12 HD or SD Inputs in a variety of configurations:
HD Mode: (1) 12 HD-SDI , (2) 9 HD-SDI + 3 HDMI
SD Mode: (1) 12 SD-SDI , (2) 9 SDI + 3 HDMI (CVBS) , (3) 4 SDI + 4 CVBS , (4) 4 SDI + 2 CVBS + 2 HDMI
Four user defined SDI or HD SDI outputs
User defined and positioned dual PIP.
Two downstream keyers (DSK) with a setup choice of basic Luma key or alpha channel.
Built-in title overlay system (TC-200) that works with entry level Datavideo CG systems.
Two independent LOGOS.
Frame Store (FS) source for each input channel.
Real-time clock featuring HH:MM:SS on the multi-screen.
Count down counter MM:SS.
User defined wipe buttons - choice of 17 wipes with optional border.
Support XPT cross point: XPT Video and XPT Audio.
Audio delay for each de-embedded audio source.
Two Audio output modes (Selectable on OSD):
--“External analog Audio” - output SDI embedded audio is two stereo pairs from 4 analog audio inputs
--“Audio Pass Through”- output SDI embedded audio is internal digital stereo pair
Remote control over an Ethernet network using a supplied PC application running on Windows 7 Operating System or above.

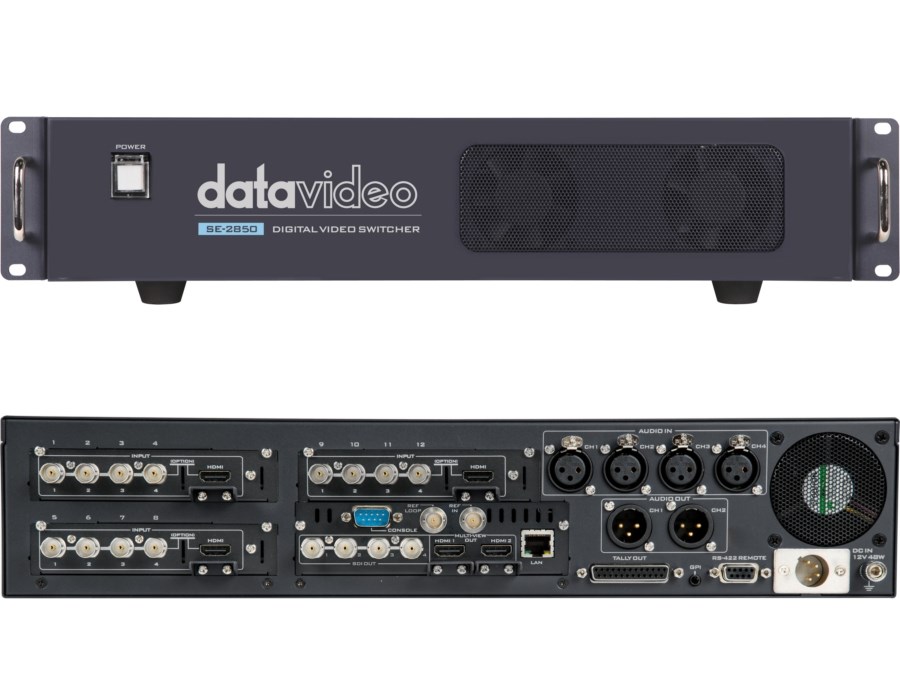

Separate, rack mountable processing unit.
Two GPI modes: Level / Pulse trigger selectable.
