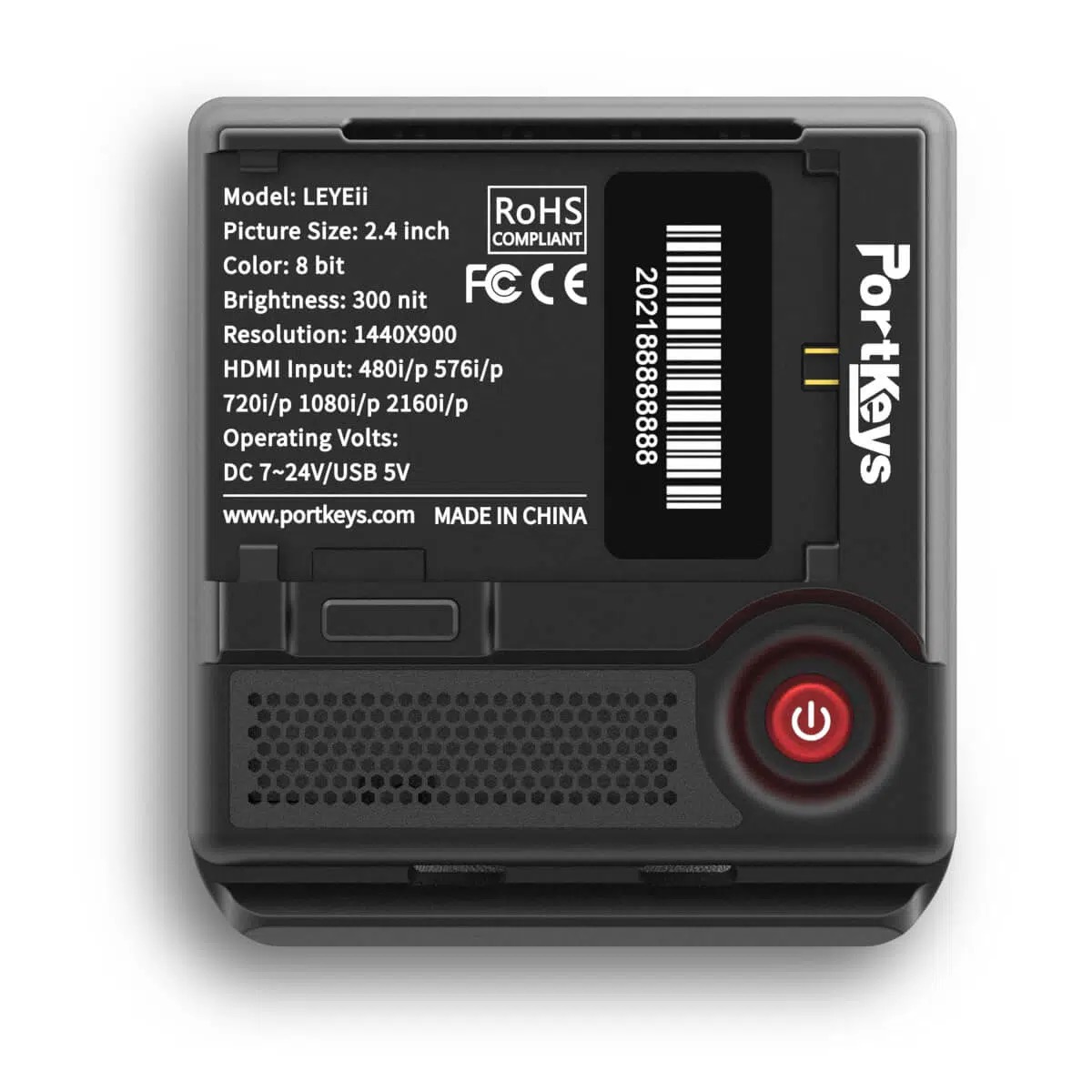

The Portkeys LEYE II EVF has an integrated Canon E6 battery plate. Upgraded Heatsink Vents Design. New upgrades but no price increase.
Portkeys LEYE viewfinder provides clear viewing options for your mirrorless cameras, Z CAM, BMPCC, Canon C70 or other cameras that lack an integrated viewfinder. The viewfinder has an HDMI input and can support up to 4K30p video.
Portkeys LEYE II features include optional and user-defined LUT support, two-pin LEMO power input, and ARRI style rosette mount with M6 thread.
Image display tools include focus peaking, zebra, waveform, histogram, and vectorscope functions. The diopter of LEYE is adjusted from -3 to +8, which can provide a variety of vision correction functions, thereby minimizing the need to wear glasses when operating the camera.
Features

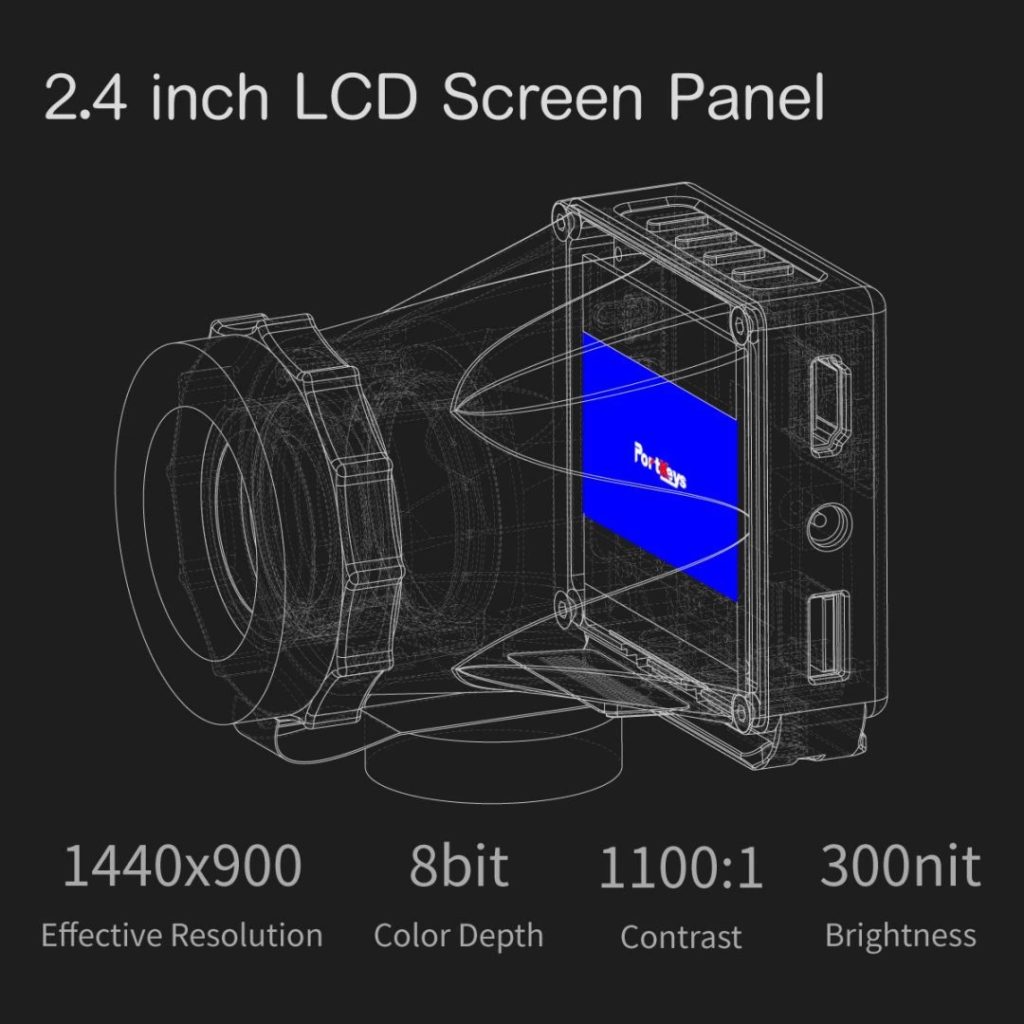

【2.4-inch Panel】2.4″ Screen size LCD EVF with 1440×900 effective resolution, 8bit Color Depth, 1100:1 Contrast, 300nit Brightness.

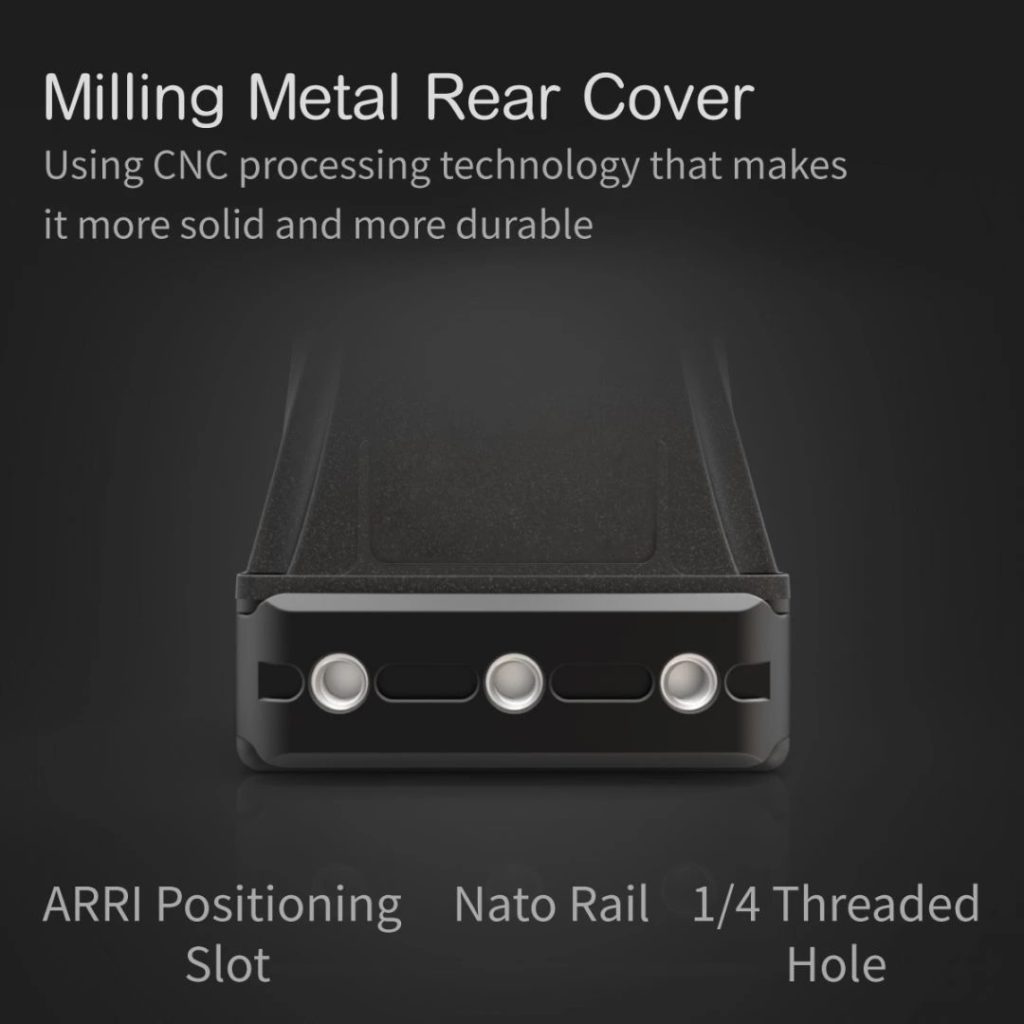

【Milling the Metal Rear Cover】Using CNC processing technology that makes it more solid and more durable.

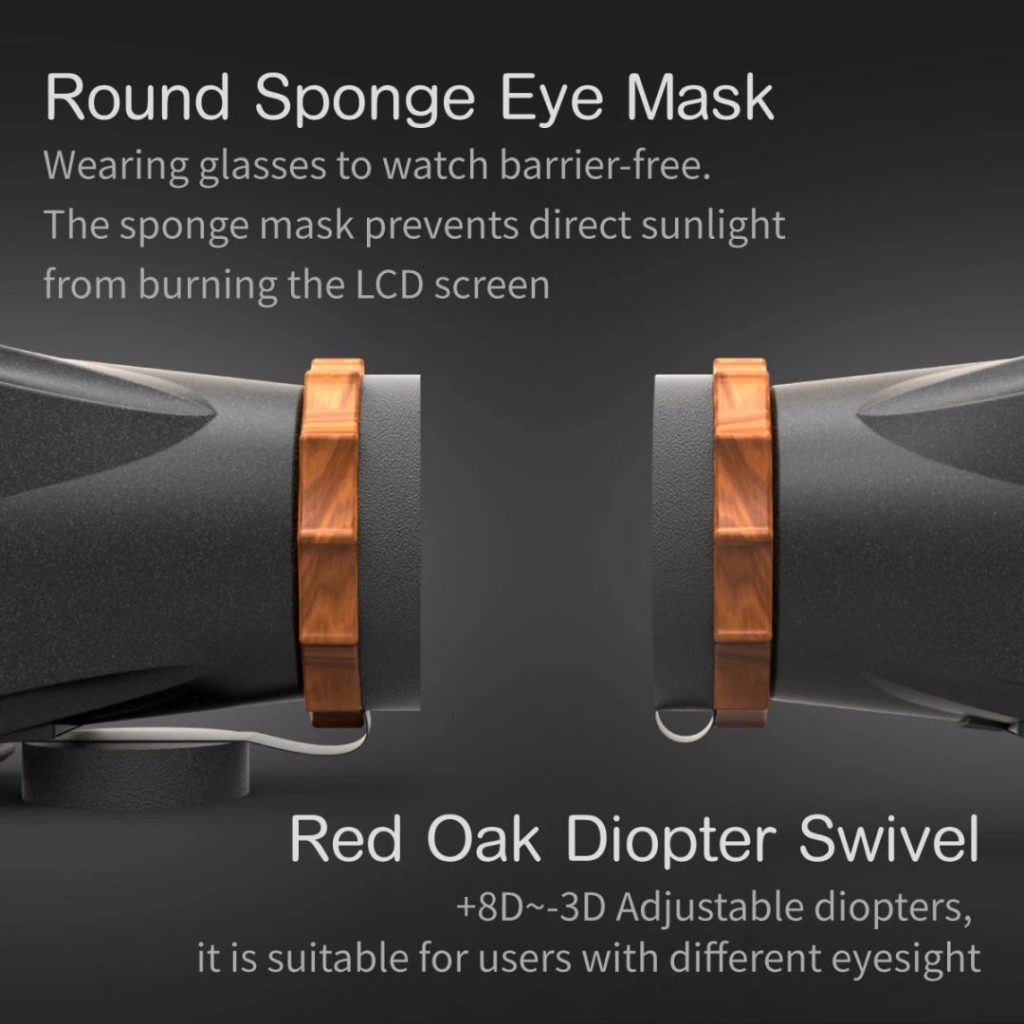

【Round Sponge Eye Mask】Wearing glasses to watch barrier-free. The sponge mask prevents direct sunlight from burning the LCD screen.

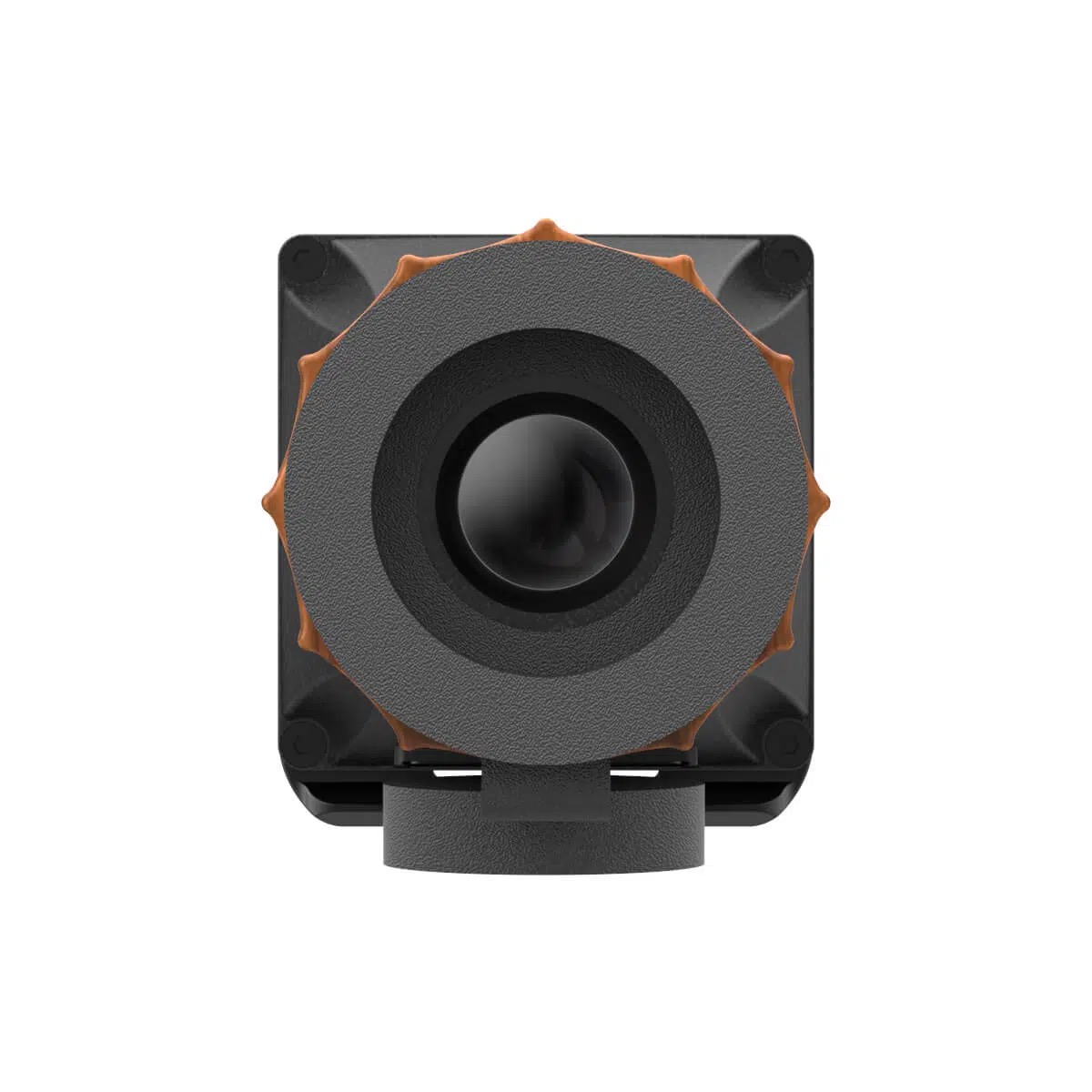

【Red Oak Diopter Swivel】+8D~-3D Adjustable diopters. It is suitable for users with different eyesight.
【Dimension】106x70x78mm

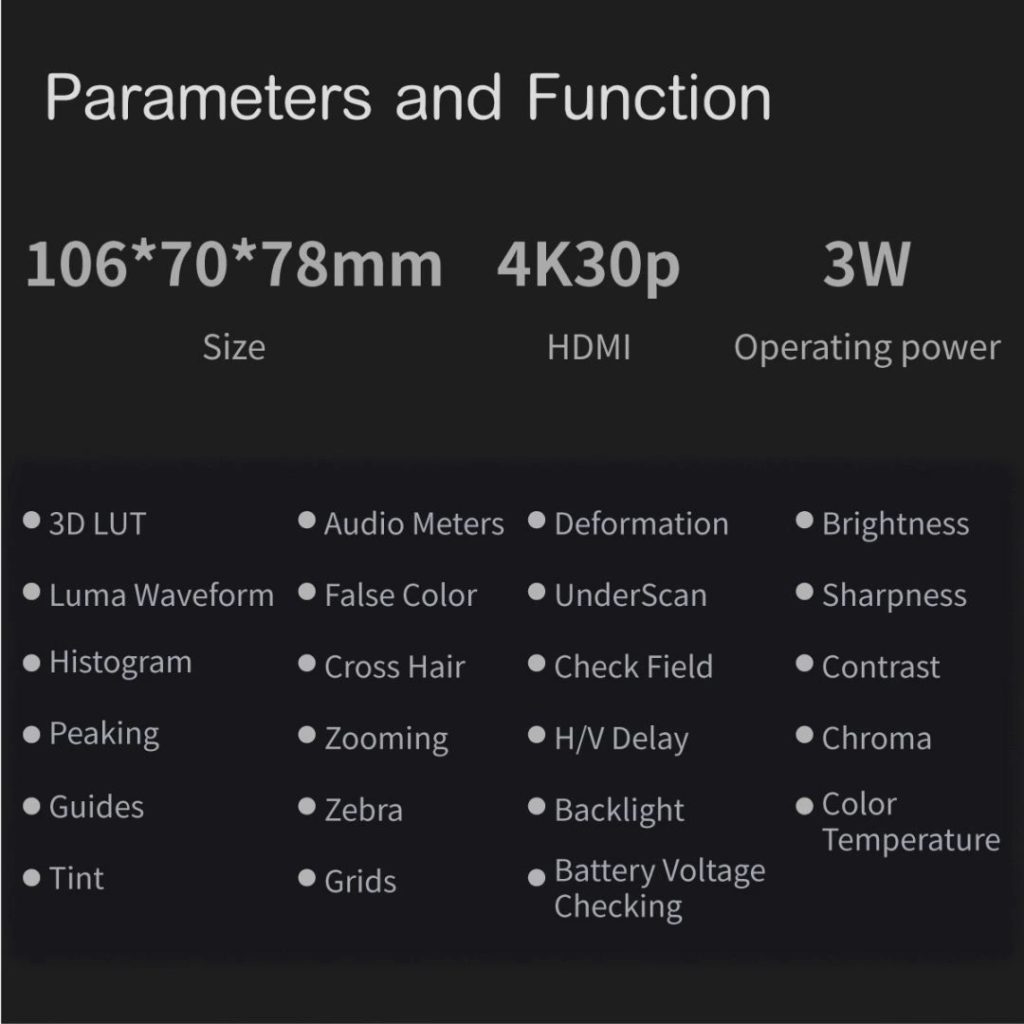

【Advanced Features】3D LUT, Luma Waveform, Histogram, Peaking, Guides, Tints, Audio Meters, False Color, Zooming, Zebra, Grids, Underscan, Deformation, Battery Voltage Checking, Color Temperature…

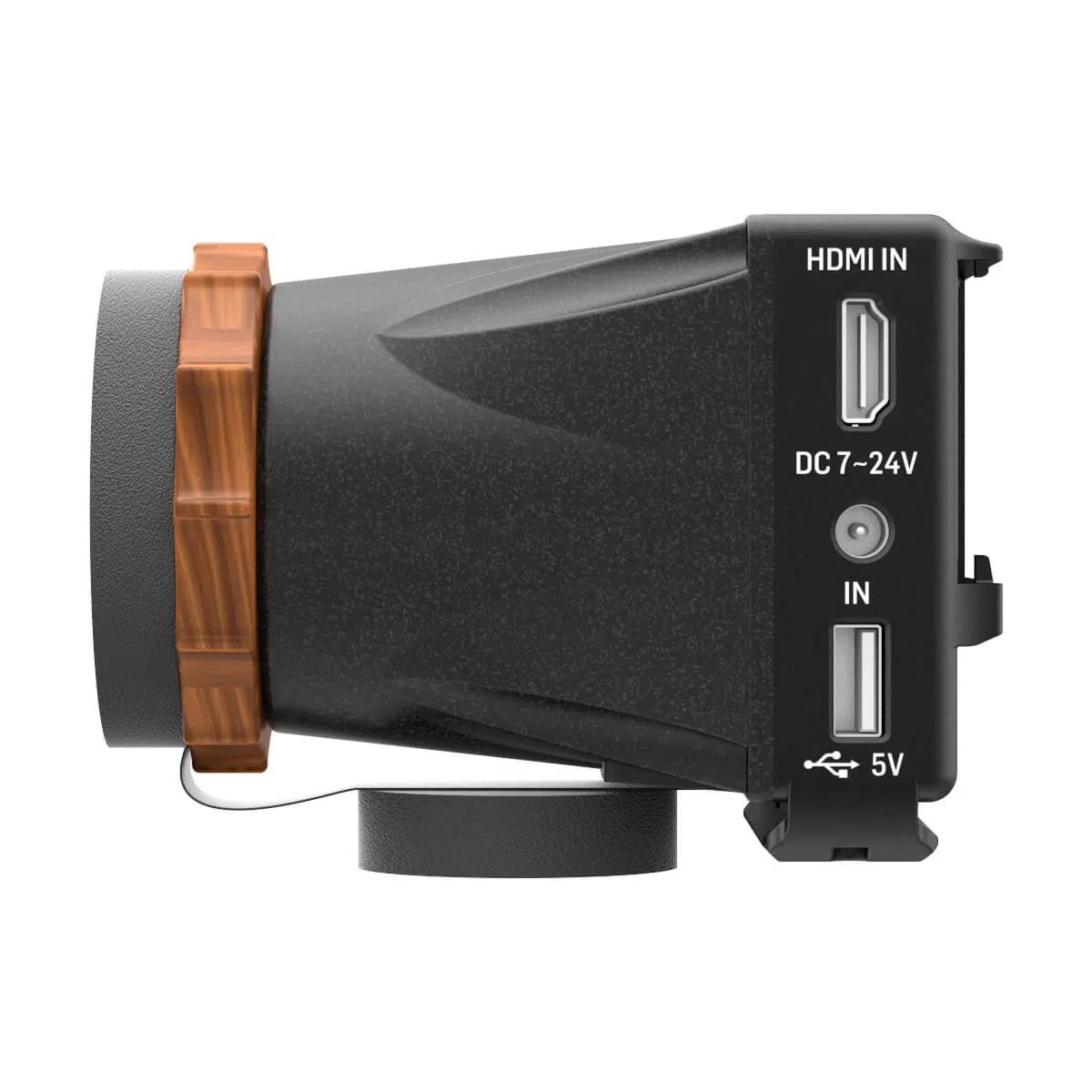

【Signal input】4K30P HDMI
【Operating Volts】DC 7~24V/USB 5V
【Upgrade Firmware】USB-A
LEYE EVF Specifications
| LCD Resolution |
1440 x 900 |
| Size |
2.4″ |
| FOV |
178º |
| Diopter range |
+8 to -3 |
| HDMI |
Input Video resolution up to UHD 30fps |
| SDI |
NO |
| USB (Type A) |
Load user-defined LUTs |

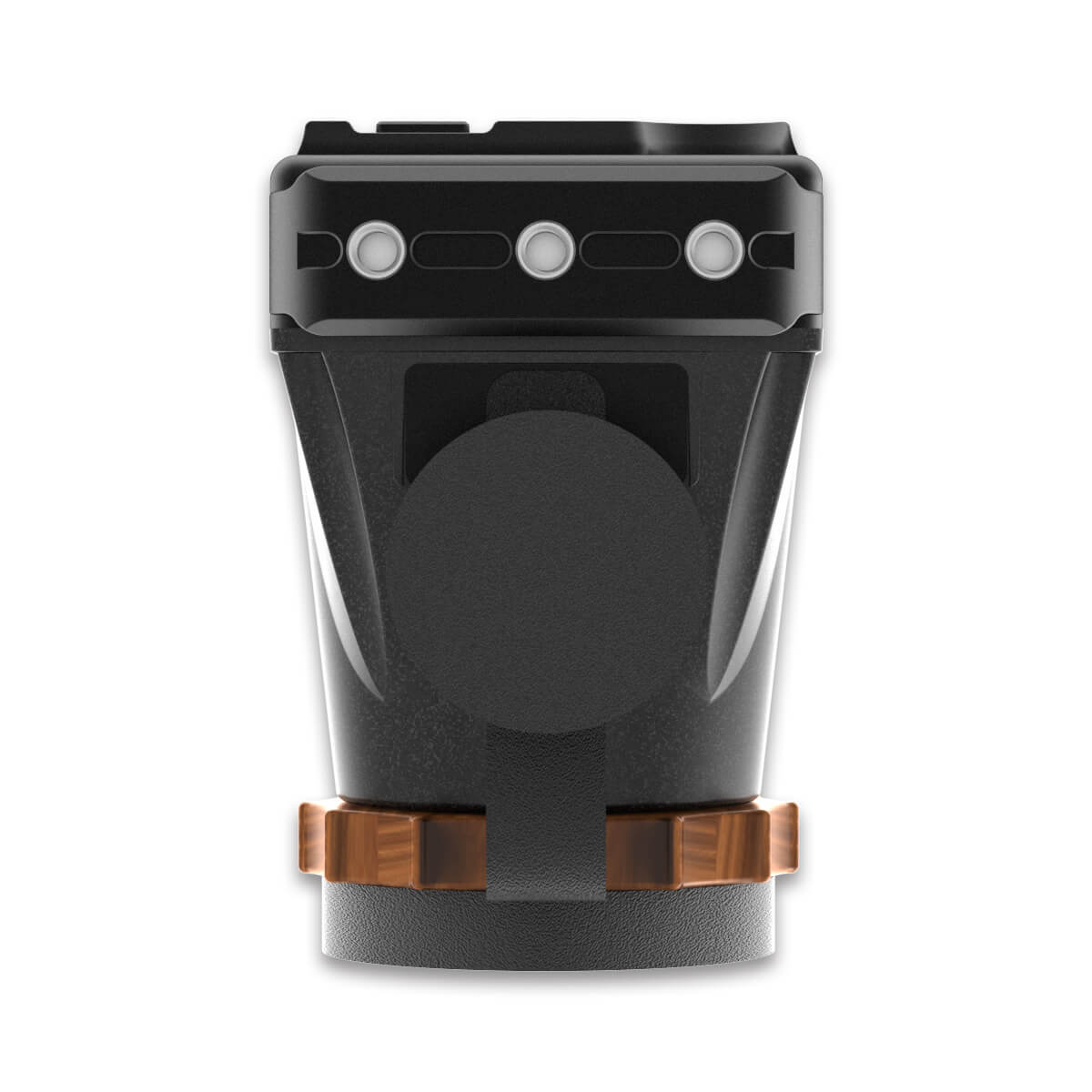

| Mounting Option |
Nato Rail with 1/4″-20 screw thread |
| Input color depth |
8-bit |
| Exposure tools |
Zebra, False color, Waveform, Histogram, Vectorscope, Grids |
| Other tools |
Focus peaking, magnifier |
| Built-in LUTs |
Selectable LUTs & user-defined LUTs |
| Power Input |
2-pin LEMO |
| Power Consumption |
3W (maximum) |
| LxWxH |
106 x 70 x 78mm (approximately) |
| Net weight |
300 gram (approximately) |
