Frequency Response:
- 20Hz to 20kHz (+/-0.5dB)
Gain:
- MAIN OUT Lo Gain: 40dB, Hi Gain: 60dB
- AUX OUT Lo Gain: 20dB, Hi Gain: 40dB
Dynamic Range;
- 94dB
THD+N;
- Lo Gain: 0.01% (+4dBu output, 1kHz)
- Hi Gain: 0.09% (+4dBu output, 1kHz)
Channel Separation:
- LO Gain: 80dB (+4dBu output, 1kHz)
- HI Gain: 68dB (+4dBu output, 1kHz)

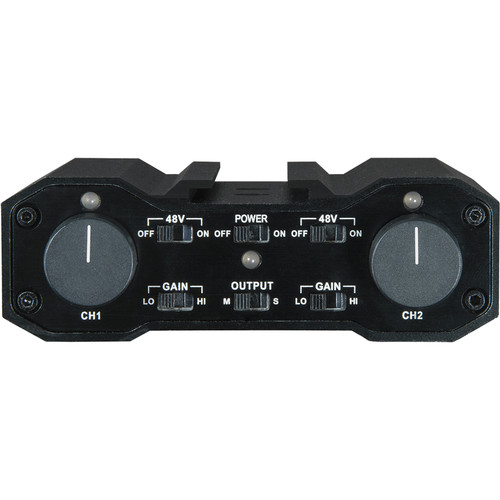

Level Indicators:
- Green -40dBu to -4dBu
- Red over -4dBu
Maximum Input Level:
- Lo Gain: -20dBu
- Hi Gain: -40dBu
Output Clipping
- MAIN OUT +20dBu
- AUX OUT 0dBu

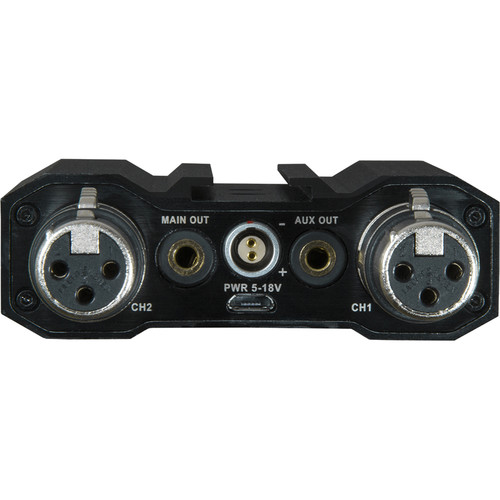

Powering
- 2-Pin 0B LEMO Jack (5-18V, 120mA)
- Pin 1 = (-), Pin 2 = (+) or Micro USB Jack (5V, 800mA)
Dimension:
- 83.6mm x 75mm x 28mm (3.3″ x 3.0″ x 1.1″)
Weight:
- 257g (0.56lbs)
