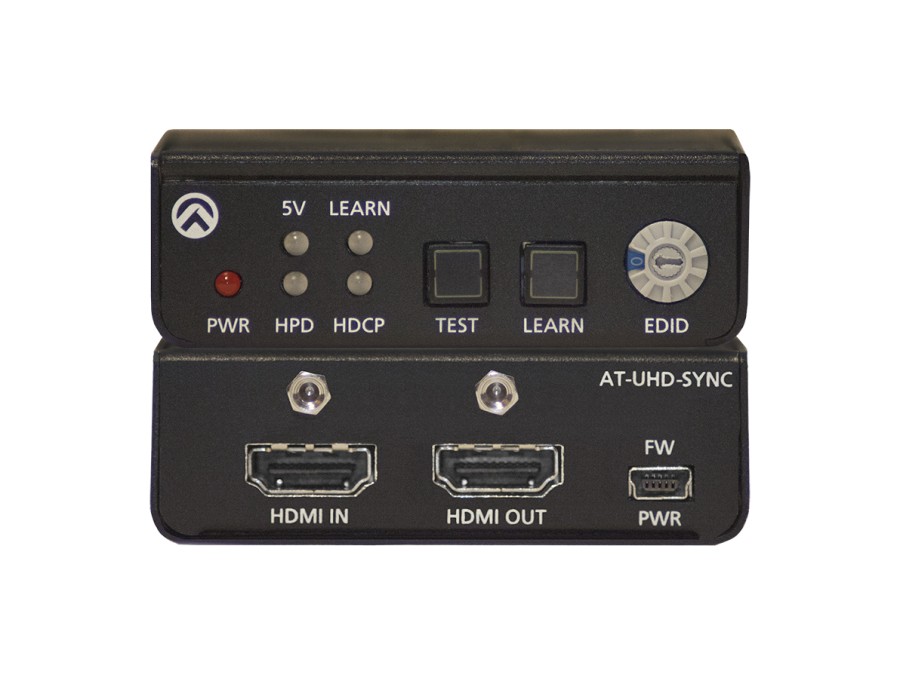

ATLONA AT-UHD-SYNC Emulator/Tester EDID do 4K HDR HDMI

Resolution: Video: 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576i, 576p, 480i, 480p VESA: 800×600, 1024×768, 1280×768, 1280×800, 1280×1024, 1366×768, 1400×1050, 1440×900, 1600×900, 1600×1200, 1680×1050, 1920×1200 Color space: YUV, RGB Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Color depth: 8-bit, 10-bit, 12-bit Audio: Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Total Harmonic Distortion: <1% over frequency bandwidth 20-20k Signal/Noise Ratio: 90+ dB Frequency Range: 20 to 20k Distance: HDMI 8-bit: up to 15 meters; up to 50 feet HDMI 10-bit/12-bit/4K: up to 10 meters; up to 30 feet Signal: Bandwidth: 10.2 Gbps CEC: Pass through HDCP: Compliant Temperature: Operating: 0°C to 50°C; 32°F to 122°F Storage: -20°C to 60°C; -4°F to 140°F Humidity: 20 to 90% non-condensing Power: Consumption: 4W Supply: Input 100-240V ~ 50/60Hz 0.2A Output: +5V/1A Dimension: H x W x D: 24.32 x 73.09 x 70 (mm); 0.96 x 2.88 x 2.76 (inch) Weight: Device: 0.09kg; 0.19lbs Certification: Device: CE, FCC, cULus, C-Tick Ports: HDMI IN: Features 3D, 4K, Dolby TrueHD, DTS-HD Master Audio HDMI OUT: Features 3D, 4K, Dolby TrueHD, DTS-HD Master Audio Mini USB: Use Power and firmware updating
