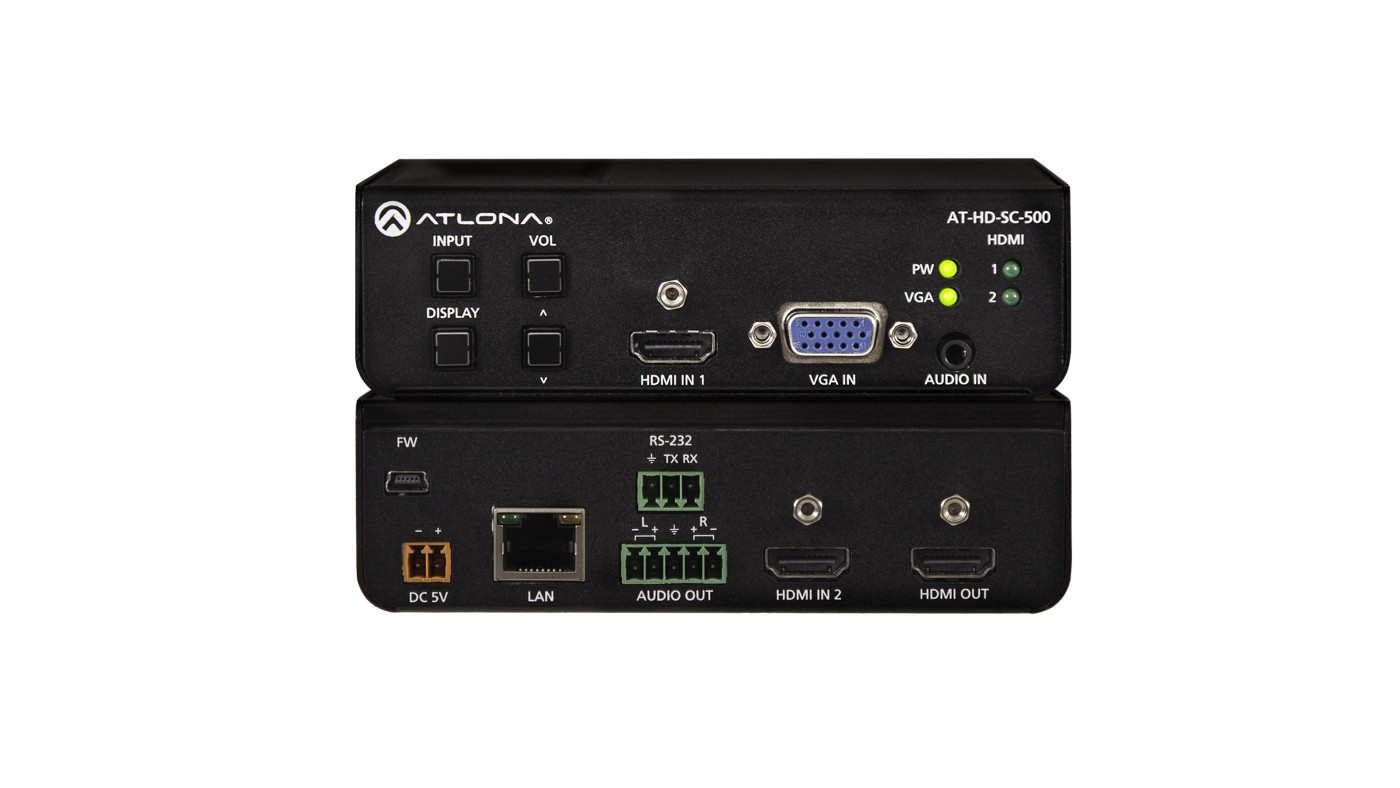

ATLONA HDMI VGA Video Skaler AT-HD-SC-500

Video Resolutions IN: [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x864, 1024x768, 800x600, 640x480 Preferred input resolution: 800x600, 1024x768, 1280x720, 1280x800, 1366x768, 1920x1080, 1920x1200 OUT: [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60, 720p@25/29.97/30/50/59.94/60800x600, 1024x768, 1280x800, 1280x1024, 1366x768, 1400x1050, 1600x900, 1600x1200, 1680x1050, 1920x1200 Color Space: YUV, RGB Chroma Subsampling: 4:4:4, 4:2:2 Color Depth: 8-bit, 10-bit, 12-bit Audio Analog IN: 3.5mm stereo jack, -10 dBu nominal input Analog OUT: Balanced, +4 dBu nominal analog output. Max output +18 dBu (only from 2Ch PCM sources) HDMI: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Bit rate: up to 24-bit Distance HDMI @ 1080p: up to 10 meters, up to 30 feet Signal Bandwidth: 6.75 Gbps CEC HDCP: Switchable - Compliant/Non-compliant Temperature Operating: 0°C to 50°C, 32°F to 122°F Storage: -20°C to 60°C, -4°F to 140°F Humidity: 20 to 90% non-condensing Power Consumption: 10.4W Supply: Input: AC100-240V ~ 50/60Hz 0.5A Output: DC 5V/3.6A Dimension H x W x D: 38 x 127 x 102 (mm), 1.5 x 5 x 4.02 (inch) Weight Device: 0.27 kg, 0.60 lbs Certification Product: CE, FCC Power Supply: CE, FCC, RoHS, RCM, TUV
