Maximum Input Levels:
- LO gain -15dBu
- HI gain -35dBu

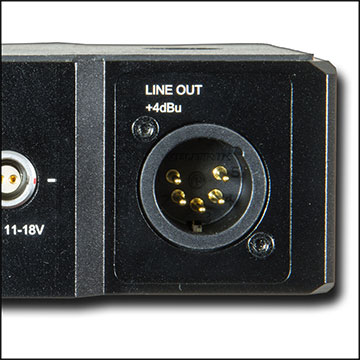

Output Level:
- +4dBu when level indicators change to red Output
- Clipping Level +25dBu (XLR), +21dBu (3.5mm)
Frequency Response:
- 20Hz to 20kHz (+/- 0.5dB) THD+N
- Lo Gain: 0.013% (+4dBu output, 1kHz)
- Hi Gain: 0.08% (+4dBu output, 1kHz)
Dynamic Range:
- 100dB
Gain:
- LO +40dB
- HI +60dB

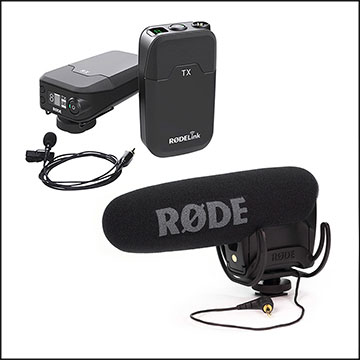

Plug-in Power:
- 3.5 volts on all mini-jack mic inputs
Level Indicators:
- Green: -40dBu to -16dBu (low)
- Yellow: -16dBu to +4dBu (normal)
- Red: +4dBu (over)
External Power:
- 11-18 volt via 2-pin Lemo Pin 1 = (-), Pin 2 = (+)
Dimensions:
- 3.54″ x 3″ x 1.57″ (L x W x H) (90 mm x 76 mm x 40 mm)
Weight:
- 10.2 oz. (0.29 kg)
